Microtek Inverters

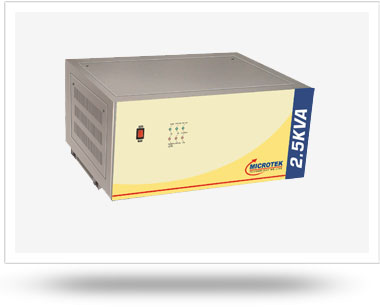

SOHO Digital Inverter Series
Technical Specifications |
Input Voltage |
: |
110V~310V (Wide input voltage range) |
Output Voltage on Mains Mode |
: |
Same as Input |
Output Voltage on UPS Mode |
: |
220V |
Output frequency on UPS Mode |
: |
50 Hz ± 1 Hz |
Switching from Mains to UPS
and from UPS to Mains |
: |
Automatic |
Output Waveform on Mains Mode |
: |
Same as Input |
Output Waveform on UPS Mode |
: |
TPZi Waveform (TRAPE ZOIDAL WAVEFORM) |
Battery Charging Current |
: |
Constant Charging Approx 10% of The Rated Battery
Current in AH |
Charger |
: |
Constant Current, Constant Wattage |
Efficiency |
: |
> 80% |
UPS Overload |
: |
105% |
UPS Short Circuit |
: |
300% |
Browns out Mains Voltage |
: |
100V ± 40V |
Technology |
: |
MICRO CONTROLLER BASED DESIGN |
Auto Reset Feature |
: |
Yes |
NOTE : Because of a policy of continuous product improvement, the specifications are subject to change without notice.

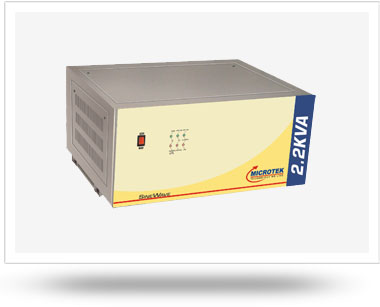

SOHO Sinewave Inverter Series
Technical Specifications |
Input Voltage |
: |
110V~310V (Wide input voltage range) |
Output Voltage on Mains Mode |
: |
Same as Input |
Output Voltage on UPS Mode |
: |
200V~230V ± 10% |
Output frequency on UPS Mode |
: |
50 Hz ± 0.1 Hz |
Switching from Mains to UPS
and from UPS to Mains |
: |
Automatic |
Output Waveform on Mains Mode |
: |
Same as Input |
Output Waveform on UPS Mode |
: |
TPZi Waveform (TRAPE ZOIDAL WAVEFORM) |
Battery Charging Current |
: |
Constant Charging Approx 10% of The Rated Battery
Current in AH |
Charger |
: |
Constant Current, Constant Wattage |
Efficiency |
: |
>90% |
UPS Overload |
: |
100% |
UPS Short Circuit |
: |
300% |
Browns out Mains Voltage |
: |
100V ± 40V |
Technology |
: |
MICRO CONTROLLER BASED DESIGN |
Auto Reset Feature |
: |
Yes |
NOTE : Because of a policy of continuous product improvement, the specifications are subject to change without notice.

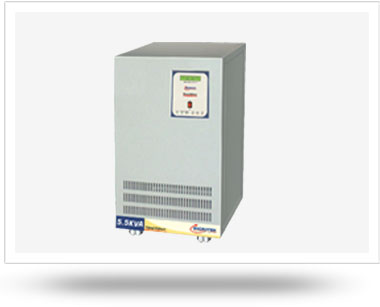

Hi-End Inverter Series
Technical Specifications |
Output Power |
: |
5500VA |
Surge Rating |
: |
16500VA |
Output Voltage |
: |
220V |
Output Frequency |
: |
50 ± 1Hz |
Output Wave Form |
: |
True Sine Wave |
Peak Efficiency |
: |
>82% |
Nominal Battery Voltage |
: |
96V |
DC Input Voltage Range |
: |
80V±1V to 114±1V |
Low Battery Cutout |
: |
80V±1V |
Total Harmonic Distortion
(Resistive Load) |
: |
Less than 3% |
Overload Handling Capability |
: |
105% for 1 minute + 125% for 5 Seconds with 4 times Auto-Reset |
Separate Output with TDR |
: |
3~5 minutes TDR |
Electrical Specification- Charger |
Charger Control (ABM) |
: |
Advanced Battery Management |
Charging Current |
: |
10.0A (settable ±5.0A) |
AC Input Voltage Range |
: |
110V~295V |
Max. Battery Boost Level |
: |
114V±1V |
Max. Battery Float Level |
: |
107V±1V |
Compatible Battery Types |
: |
Lead Acid/SMF |
Mains Input Power Factor |
: |
0.85 to unity |
* Load may very depending on the condition of the appliances or manufacturers specs.
* Specifications are subject to change without notice.
* The company does not take liability for consequential damages.
