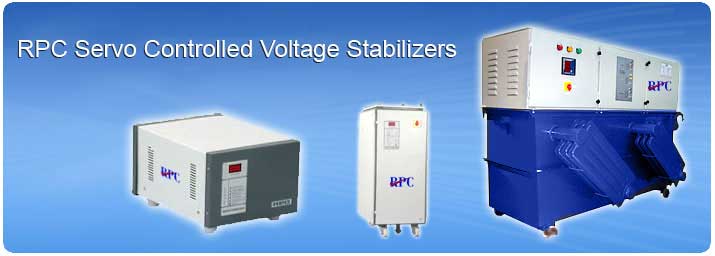

Stabilizers
Technical Specifications
| |
Single Phase (L-N) |

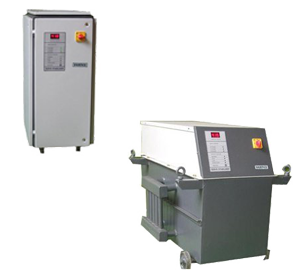

Three Phase (L-L) |
| Stabiliser type |
Servo Stabiliser with O/P sensing feed-back system |
| Type of cooling |
Air cooled / Oil cooled |
| Model |
-
|
Balanced / Unbalanced |
| Servo motor drive |
A.C. synchronous stepper motor |
| Input voltage range |
170–270 V |
360–460 /340–480 /310–480 V |
| Nominal output voltage (Internally Settable to) |
230 V ± 1%
(220 V or 240 V)
|
415 V ±1%
(380 V or 400 V)
|
| Voltage correction speed |
25 Volts/Sec (L–N) |
48 Volts/Sec (L–L) |
| Single phasing prevention |
NA |
By voltage sensing method |
Input frequency
|
47 – 53 Hz |
| Output voltage regulation |
± 1% of the set output voltage |
| Waveform distortion |
Nil |
| Effect of load pf on output voltage |
Nil |
| Efficiency |
> 97 % |
| Output electronic under/over voltage protection |
Upper Limit: +5% (± 2 V) above nominal voltage
Lower Limit: –10% (± 2 V) below nominal voltage
|
| Output electronic overload cut-off |
Operative above 110% of rated out put current |
| Short circuit protection |
Fuse at the input |
| Resetting mode |
Manual / Auto restart with 15 seconds time delay |
| Stabiliser bypass switch |
Optional
|
Built-in upto 50 kVA |
| Input / Output cable terminations |
5-way terminal connector |
7-way terminal connector |
| Front Panel Display / Indications |
- Digital voltmeter to read O/P voltage
- I/P Present LED
- O/P Normal LED
- High Cut-off LED
- Low Cut-off LED
- Over-load LED
|
- Digital voltmeter to read
O/P voltage
- R / Y / B-Phase LED
- O/P Normal LED
- High Cut-off LED
- Low Cut-off LED
- Over-load LED
|
| Standard Product Ratings |
1 kVA - 20 kVA |
Aircooled - 3 kVA - 60 kVA
Oilcooled - 3 kVA - 1000 kVA |
*Specifications are subject to change without notice, on account of developments in product design
Note:
1) Proper Neutral & Earthing should be provided separately.
2) All above products are designed for indoor application.
3) Oilcooled Stabilisers: The required quantity of transformer oil (IS: 335 Standards) is to be provided by the customer.

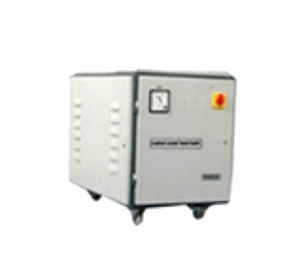

Automatic Voltage Stabilizers
We are leading Supplier and Manufacturer of Automatic voltage transformer uses a tank circuit composed of a high-voltage resonant winding and a capacitor to produce a nearly constant average output with a varying input. The ferromagnetic approach is attractive due to its lack of active components, relying on the square loop saturation characteristics of the tank circuit to absorb variations in average input voltage. Older designs of ferromagnetic transformers had an output with high harmonic content, leading to a distorted output waveform. Modern devices are used to construct a perfect sine wave. The ferromagnetic action is a flux limiter rather than a voltage regulator, but with a fixed supply frequency it can maintain an almost constant average output voltage even as the input voltage varies widely.
Salient Features:
Isolation transformer: the input supply is completely isolated from the output, by means of an isolation transformer.
Ferraro resonant technology:
- No moving parts
- Overload protection
- Short circuit protection
- Spike rejection capabilities
- Floating output
- No semi-conductors used (normal cvt)
- No electronics circuits (normal cvt)
- Faster voltage correction than servo stabilizer
Applications:
The CVT's are used for various applications like computers, data processing equipment, audio/video equipment, photo processing equipment, bio-medical equipment, telex, EPABX, fax, cash registers, electronic typewriters, internet application, modem & other accessories like netphone, control panels, etc
Oil Cooled Servo Voltage Stabilizer
We Leading Supplier and Manufacture of Oil Cooled Servo Stabilizers are used to protect any critical equipment, which are effected by the fluctuation in the input supply and those equipments do not operate when they are not used at the specified voltage. Our Servo Stabilizers by providing constant output with tolerance of +/-1% makes equipments operate efficiently and hence improve their life. Also protect from being damaged due to high and low voltage.
Servo Voltage Stabilizer
We are Sri Ragavendra Power Controls Pvt Ltd leading manufacturer and supplier of Servo Voltage stabilizers in Chennai, Bangalore and pune are used to protect any critical equipment, which are effected by the fluctuation in the input supply and those equipments do not operate when they are not used at the specified voltage. Our Servo Stabilizers by providing constant output with tolerance of +/-1% makes equipments operate efficiently and hence improve their life. Also protect from being damaged due to high and low voltage.

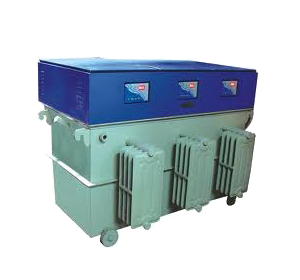

Industrial Voltage Stabilizers
We Leading Supplier and Manufacture of Industrial voltage transformer uses a tank circuit composed of a high-voltage resonant winding and a capacitor to produce a nearly constant average output with a varying input. The ferromagnetic approach is attractive due to its lack of active components, relying on the square loop saturation characteristics of the tank circuit to absorb variations in average input voltage. Older designs of ferromagnetic transformers had an output with high harmonic content, leading to a distorted output waveform. Modern devices are used to construct a perfect sine wave. The ferromagnetic action is a flux limiter rather than a voltage regulator, but with a fixed supply frequency it can maintain an almost constant average output voltage even as the input voltage varies widely.
Salient Features:
Isolation transformer : the input supply is completely isolated from the output, by means of an isolation transformer.
Ferraro resonant technology:
- No moving parts
- Overload protection
- Short circuit protection
- Spike rejection capabilities
- Floating output
- No semi-conductors used (normal cvt)
- No electronics circuits (normal cvt)
- Faster voltage correction than servo stabilizer

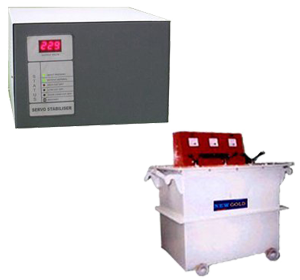

Single Phase Servo Voltage Stabilizer
Single phase Stabilizer (Air cooled /Oil cooled):
We Leading Supplier and Manufacture of Servo Stabilizers are used to protect any critical equipment, which are effected by the fluctuation in the input supply and those equipments do not operate when they are not used at the specified voltage. Our Servo Stabilizers by providing constant output with tolerance of +/-1% makes equipments operate efficiently and hence improve their life. Also protect from being damaged due to high and low voltage.
Air Cooled Servo Voltage Stabilizer
We Leading Supplier and Manufacture of Air Cooled Servo Stabilizers are used to protect any critical equipment, which are effected by the fluctuation in the input supply and those equipments do not operate when they are not used at the specified voltage. Our Servo Stabilizers by providing constant output with tolerance of +/-1% makes equipments operate efficiently and hence improve their life. Also protect from being damaged due to high and low voltage.
