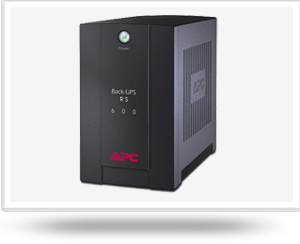

Line Interactive UPS - APC



Technical Specifications


Output
Output Power Capacity 600 Watts / 1000 VA
Max Configurable Power 600 Watts / 0 VA
Nominal Output Voltage 120V
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Topology Line Interactive
Waveform Type Stepped approximation to a sinewave
Output Connections (4) NEMA 5-15R (Battery Backup)
  (4) NEMA 5-15R (Surge Protection)
Input
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-15P
Cord Length 1.83 meters
Maximum Input Current 12A
Input Breaker Capacity 15.0 A
Batteries & Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 8 hour(s)
Replacement Battery APCRBC123 APCRBC123J
RBC™ Quantity 1

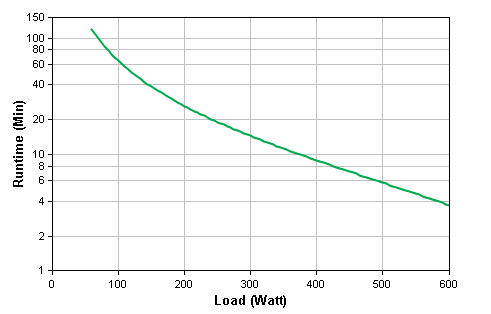

Runtime Graph


Hover over the line on the graph above to view the runtime at any desired load This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.

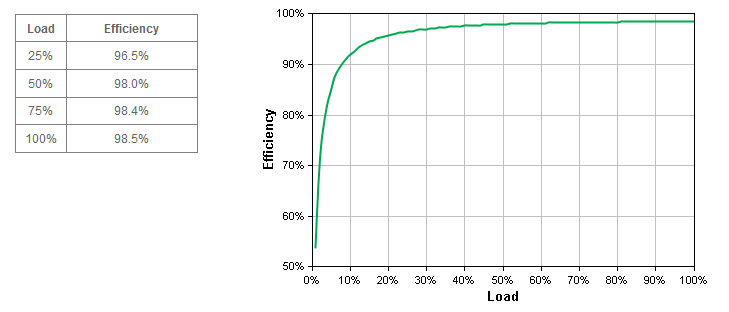

Energy Use/Efficiency
Battery Type Hover over the line on the graph above to view the efficiency at any desired load Curve fit of data measured in accordance with the ENERGY STAR Program Requirements Product Specification for Uninterruptible Power Supplies (UPSs) - Eligibility Criteria Version 1.0. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s) USB
Control panel
Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating 354 Joules
Filtering Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
Data Line Protection Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
Physical
Maximum Height 250.00 mm
Maximum Width 100.00 mm
Maximum Depth 382.00 mm
Net Weight 10.72 KG
Shipping Weight 11.70 KG
Shipping Height 337.00 mm
Shipping Width 225.00 mm
Shipping Depth 487.00 mm
Master Carton Units 1.00
Color Black
SCC Codes 1073130427878 5
Units per Pallet 16.00
Pallet Dimensions 46 inches
Pallet Weight 393.28 KG
Environmental
Operating Environment 0 - 40 °C
Operating Relative Humidity 0 - 95%
Operating Elevation 0-2952.6 meters
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95%
Storage Elevation 0-14763.6 meters
Audible noise at 1 meter from surface of unit 45.00 dBA
Conformance
Regulatory Approvals DOC/Industry Cananda, ENERGY STAR (USA), UL Listed
Standard Warranty 3 years repair or replace
Sustainable Offer Status
RoHS Compliant
REACH REACH: Contains No SVHCs
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
